EV8 --Rugged tablet
| 型号 | EV8 | |

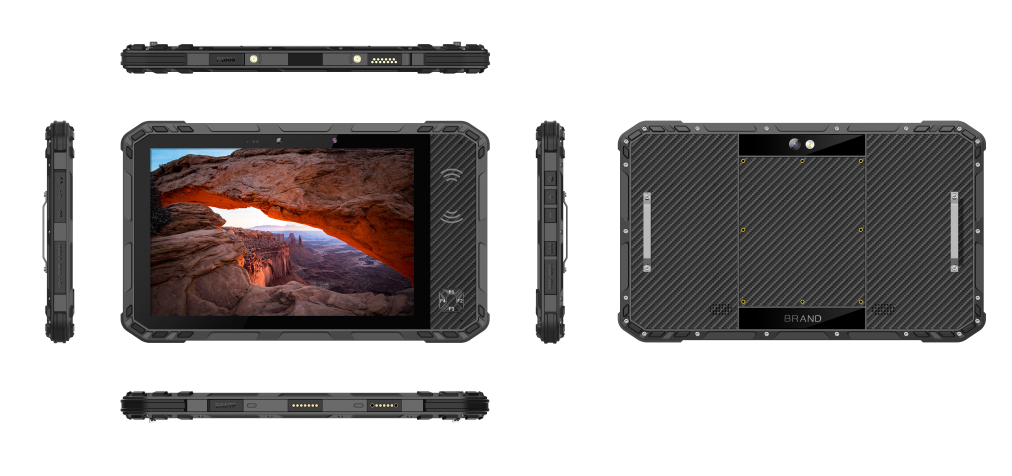

| Product pictures |
 |
|
| Product Appearance | ||
| Type | Details | Standard Configuration |
| Product Form | Product Form | rugged tablet |
| Dimension | 246*148*17mm | |
| Weight | 750g | |
| Product Color | black | |
| LCD | Screen Size | 8 inch 16:10 |
| Resolution | 1920*1200 IPS | |
| Brightness | 1000Nit | |
| TP | Touch panel | 10 touch capacitive screen, Corning gorilla glass hardness above 7H, scratch proof |
| Camera | Front | 8MP |
| Rear | 20MP | |
| Speaker | Built-in | Built-in 8 Ω/1W waterproof speaker X 2 |
| Microphone | Built-in | High sensitivity: -28± 2D ×1 |
| Key | Power,、V+、V-、PTT,、F1、F2、F3、F4 | |
| Battery(tablet) | Type | Built-in pure cobalt battery |
| Capacity | 3.8V/10000mAh | |
| Endurance | 12H (70% volume, 70% lumen brightness, 1080 HD video) | |
| System Hardware Configuration | ||
| Type | Details | Descriptions |
| CPU | Type | MT6771T-8核Cortex-A38 2.0GHZ/2.1GHZ |
| Speed | 2.1GHz | |
| GPU | Type | Arm Mali-G72 MP3 |
| RAM | LPDDR3 | 4GB |
| ROM | Emmc | 64GB |
| G_sensor | Built-in | support |
| Light sensor | Built-in | support |
| geomagnetic sensor | Built-in | support |
| gyroscope | Built-in | support |
| Internet Connections | ||
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n/ac) 频率2.4G+5.8G 双频WIFI MT6631 (WIFI 5) |
| Bluetooth | Built-in | BT5.0 (BLE) class 1 Transmission distance ：10m |
| 4G | Built-in |
WCDMA：1/2/4/5/8 TD-SCDMA：B34/B39 TDD：34/38/39/40/41 FDD；1/2/3/4/5/7/8/12/17/19/20/26/28a/28b |
| GPS | Built-in | Beidou+GPS+glonass |
| NFC | Built-in | NXP NFC 13.56MHz support ISO/IEC 下14443A/14443B/15693/18092/mifare protocol，identification distance ：2-4cm |
| I/O Ports | ||
| Type | Details | Descriptions |
| TF Card | Extending external storage | TF x1 max：512G |
| SIM Card | SIM port | SIM x1 |
| USB port |
Extending external storage and data exchange |
USB2.0*2（ Type-A*1、Type-C*1） |
| Earphone Jack | audio output | ∮3.5mm standard earphone jack x1 |
| DC jack | power | DC 5V 3A ∮3.5mm DC jack x1 |
| RJ45接口 | Type-A switch | 10/100Mx1 |
| Standard Accessories | ||
| Type | Details | Descriptions |
| Type-C cable | Type-C cable | *1 |
| Operating instruction | Operating instruction | *1 |
| wrist strap | wrist strap | *1 |
| Adapter | Standard | AC100V to 240V, 50Hz or 60Hz output DC 5V/3A |
| Software Configuration | ||
| Type | Details | Descriptions |
| Operation System |
Operation System Version |
Android:13 |
| Product Certificate | ||
| Type | Details | Descriptions |
| :Certificates System | IP68 | certified |
| Battery | UN38.3，MSDS,航空、海运报告，IEC62133 | |
| Reliability | ||
| Type | Details | Descriptions |
| Product reliability | Falling height | from 120cm height to wooden floor with booting status |
| Working temperature | ’－20℃～60℃ | |
| Storage temperature | ’－40℃～70℃ | |
| Humidity | Humidity: 95% Non-Condensing | |
